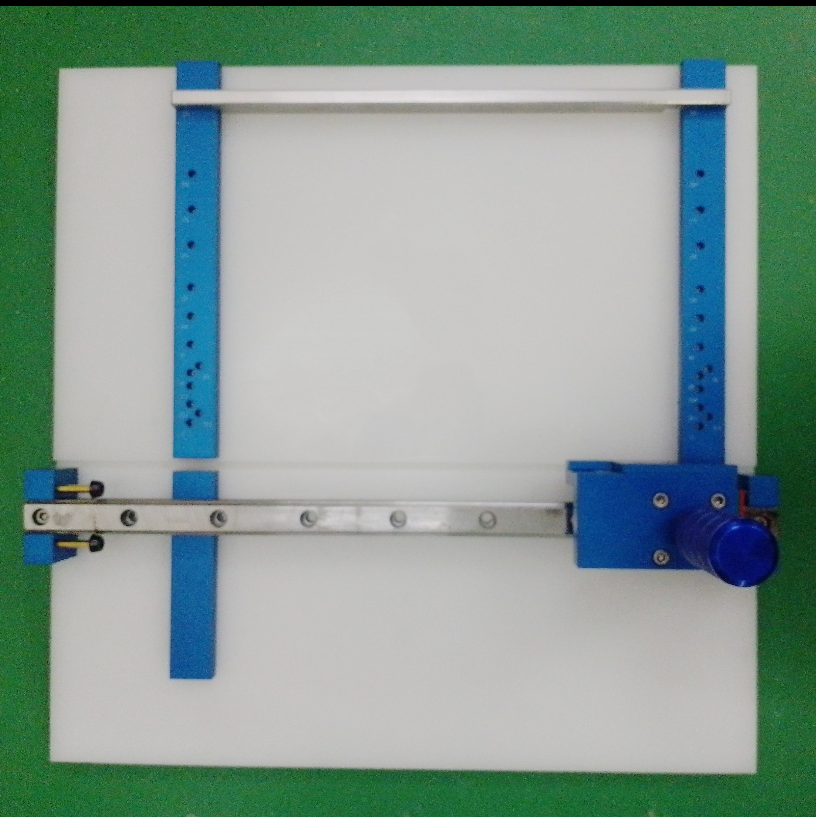

EI-ECPA Edge Crush and Pin Adhesive Test Sample Cutter is for edge crush test (ECT) and pin adhesive test (PAT) sample preparation, cut the test piece in perfect parallel, width and length.
Specification

Model	EI-ECPA
ECT Test Piece	25 x 100 mm 50.8 x 50.8mm
PAT Test Piece	25 x 80 mm 31.8 x 100mm 25 x 100mm 50.8 x 100mm
Cutting width	25, 31.8, 38.1, 50.8, 60, 65, 80, 100, 120, 150, 175, 200, 250mm
Max. Length	320 mm
Max. Thickness	Up to 16 mm
Dimension	500 x 500 x 20mm
